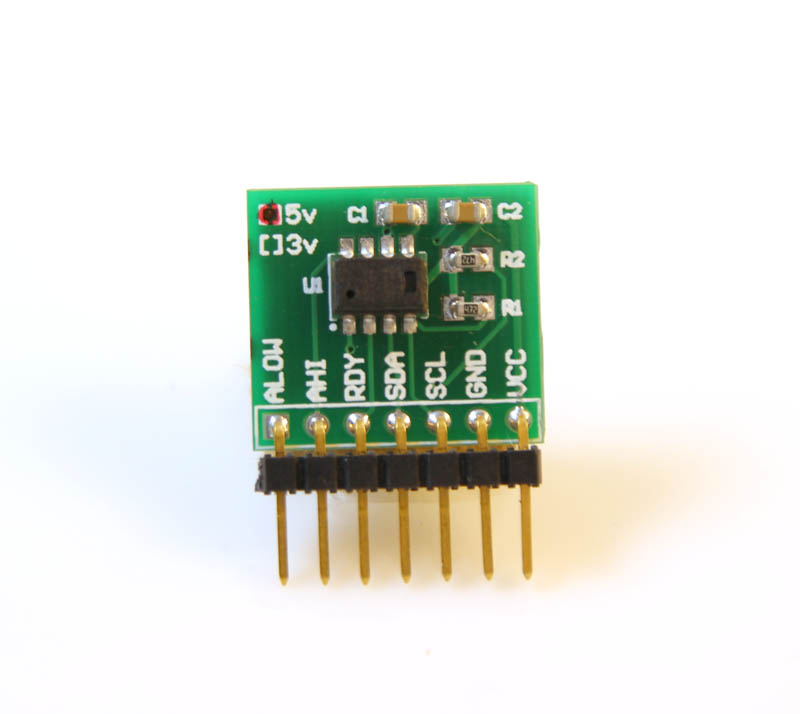

Sensor ChipCap 2™
Calibration Fully Calibrated & Temperature Compensated
Comm Digital Output (I2C)
Alarm User configurable Low and High Alarm Settings With Alarm Pins
Precision Precision & Accuracy (±2%RH, ±0.3°C, 14 bit )
Humidity Range 0 ~ 100% RH
Humidity Response 7 Seconds
Temp Range -40°C ~ 125°C
Temp Response 5 Seconds
Operating Voltage min 2.7V to max 5.5V
Current Consumption Typical ~750uA, Sleep Mode ~1uA
Dimensions L = 0.645" (16.383mm)
W = 0.72" (18.288mm)
